Box Trailer Sizes and Capacities

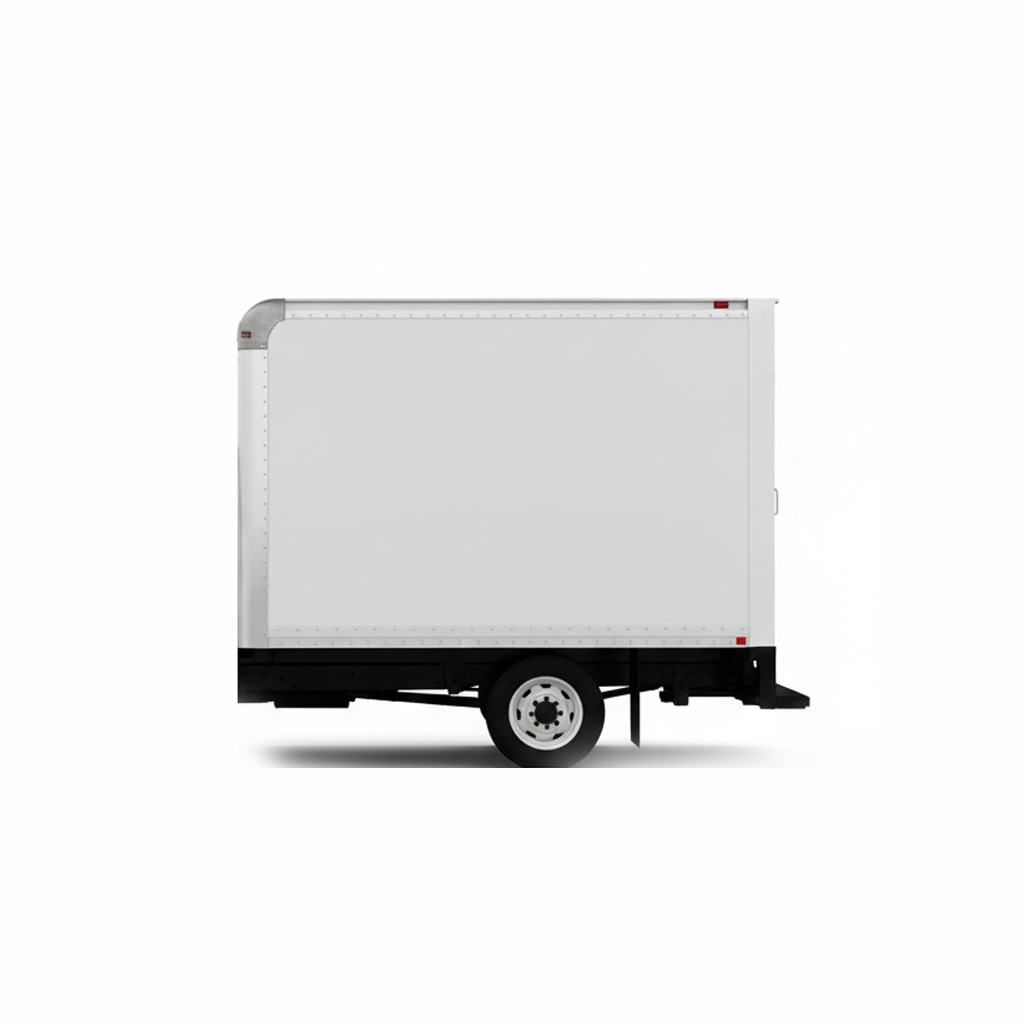

12'

Payload 7,000 lbs
Pickup 1/2 ton

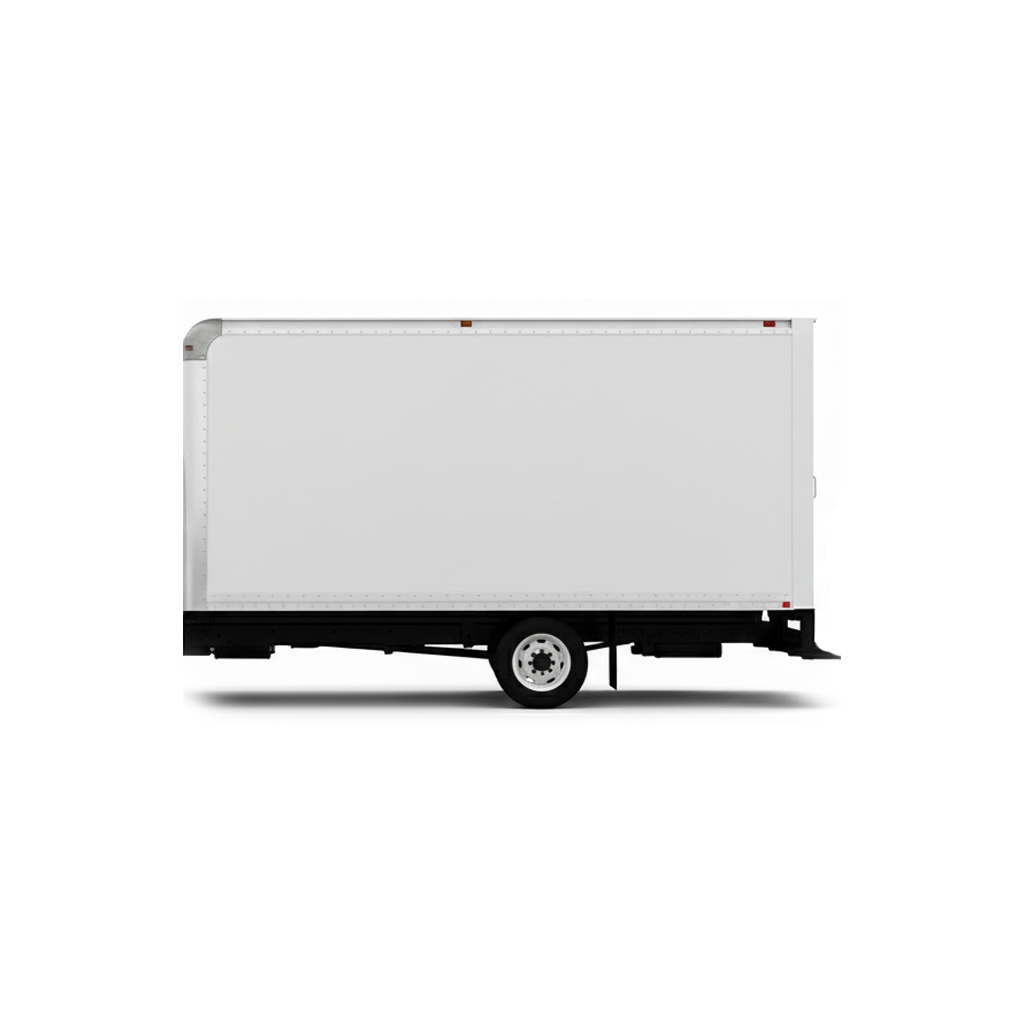

Camion-16

16'

Payload 8,000 lbs
Pickup 1/2 ton

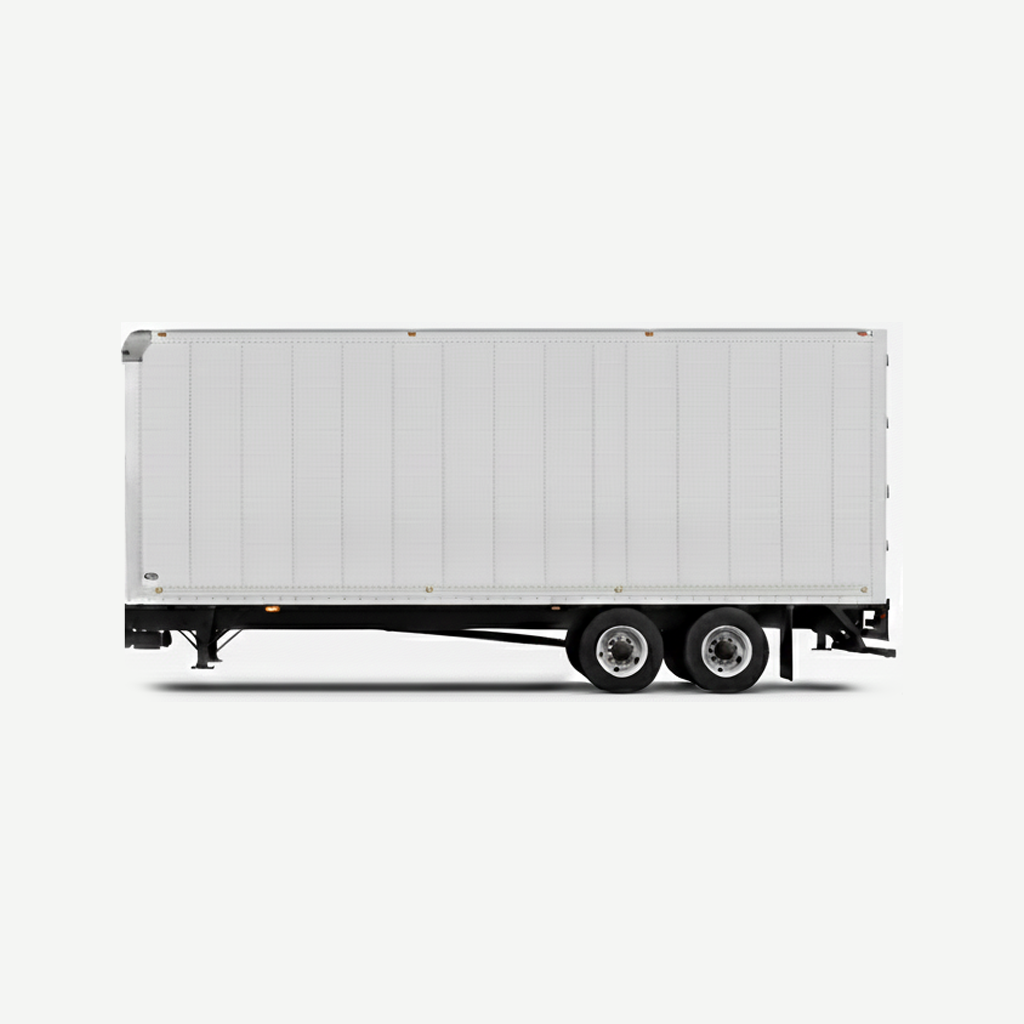

Camion-22

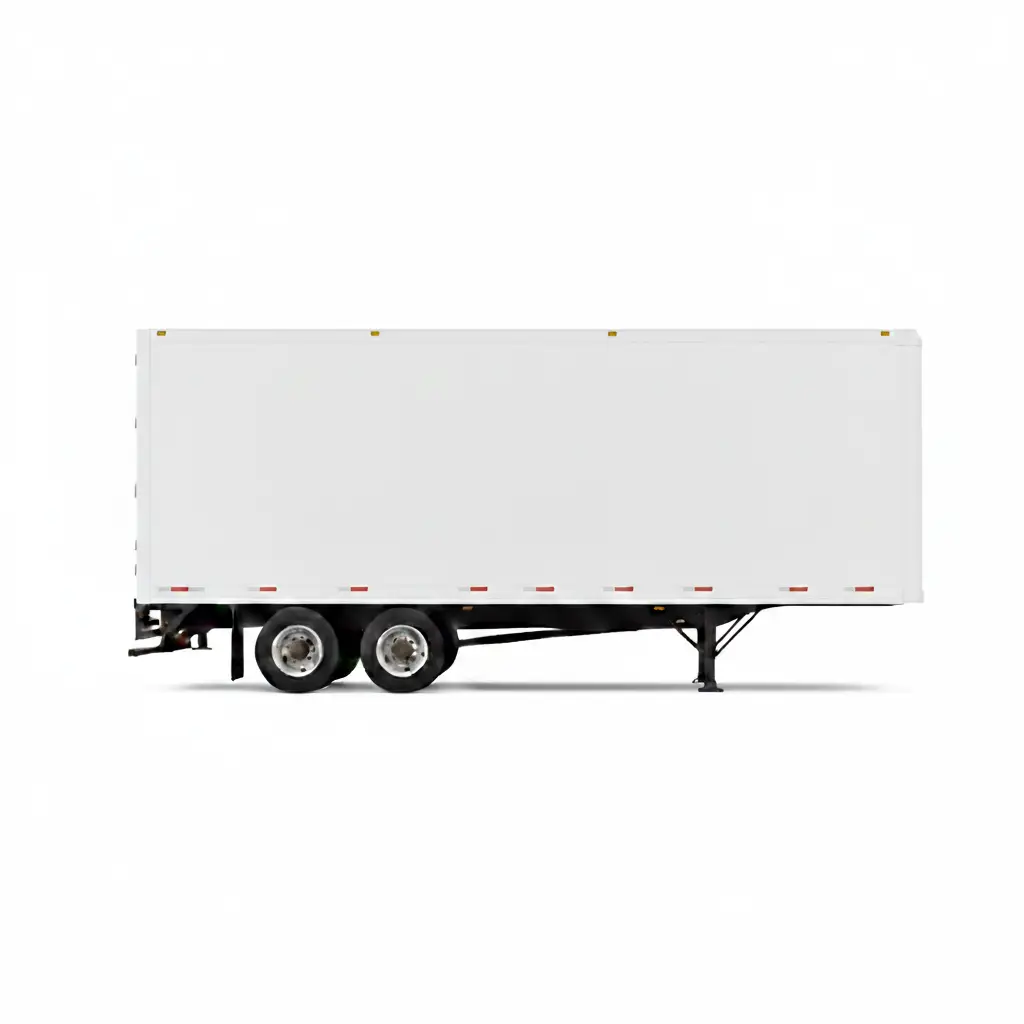

20'

Payload 9,000 lbs
Pickup 3/4 ton

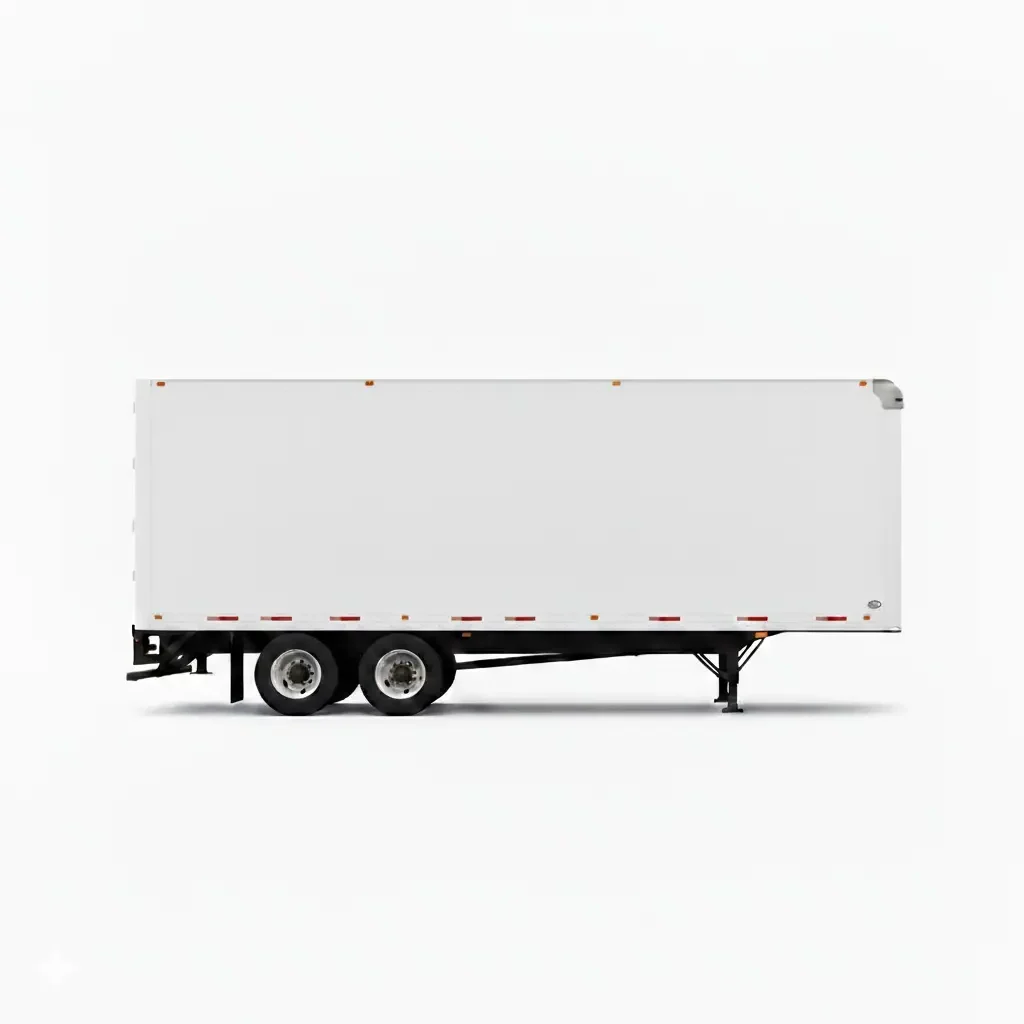

Camion-26

26' Standard

Payload 10,000 lbs
Pickup 1 ton

Camion-26

26' Heavy Duty

Payload 12,000 lbs
Pickup 1 ton+

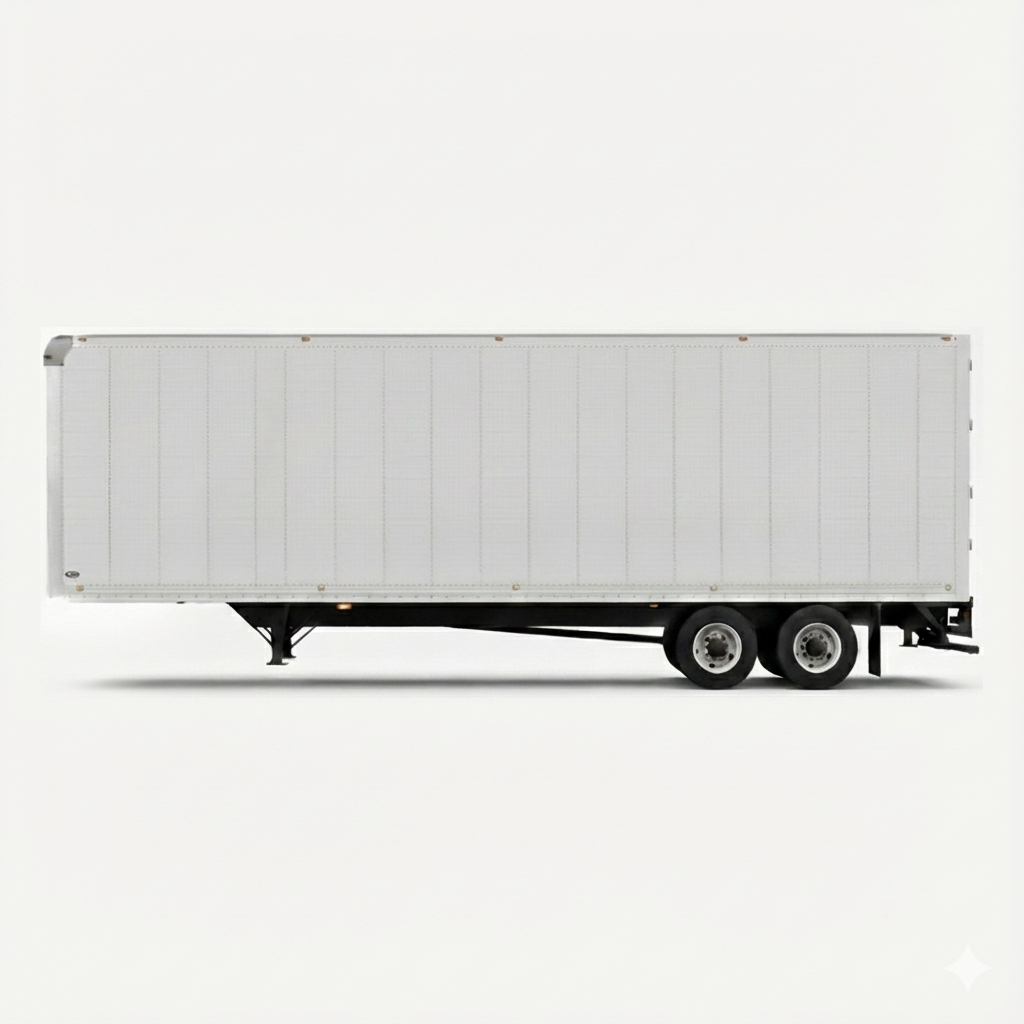

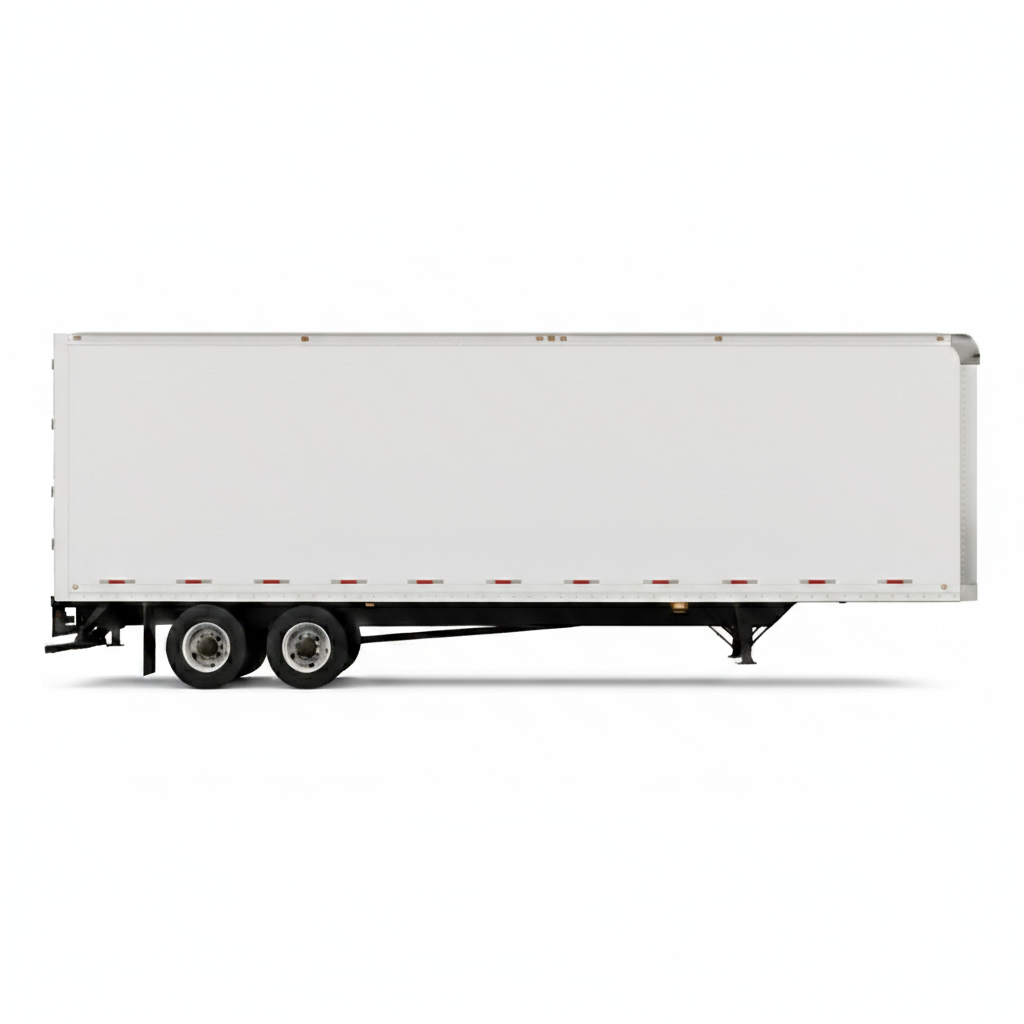

30'

Payload 14,000 lbs+
Pickup 1 ton+

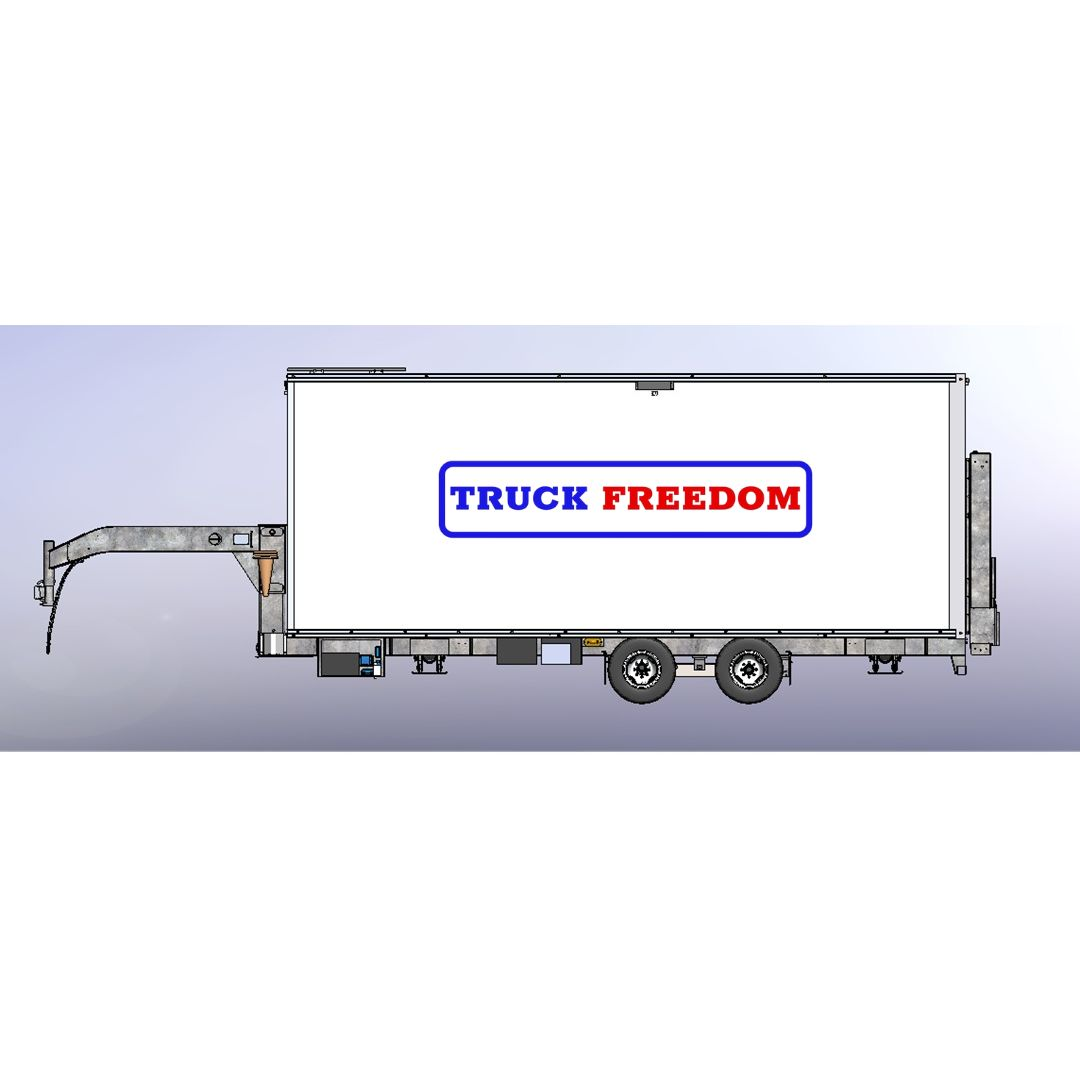

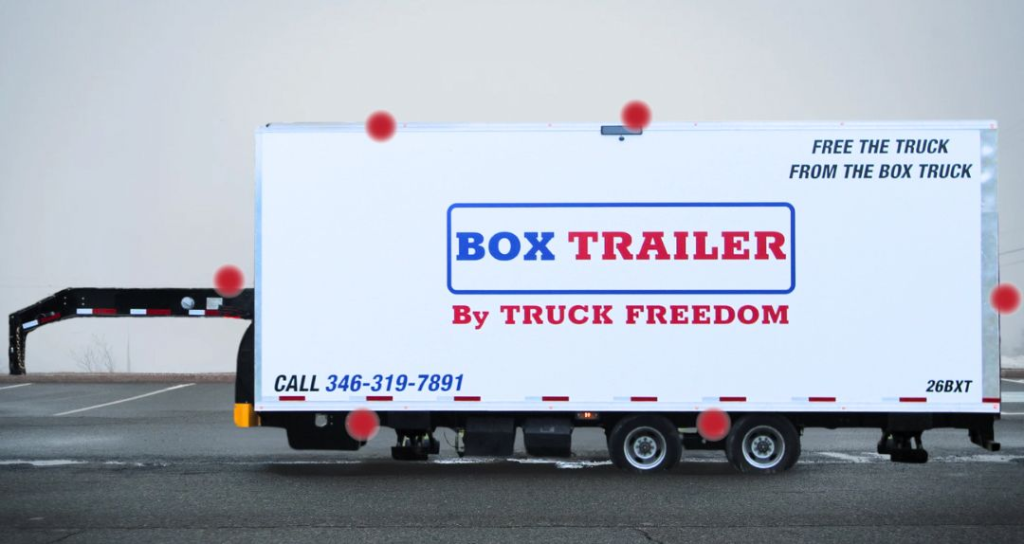

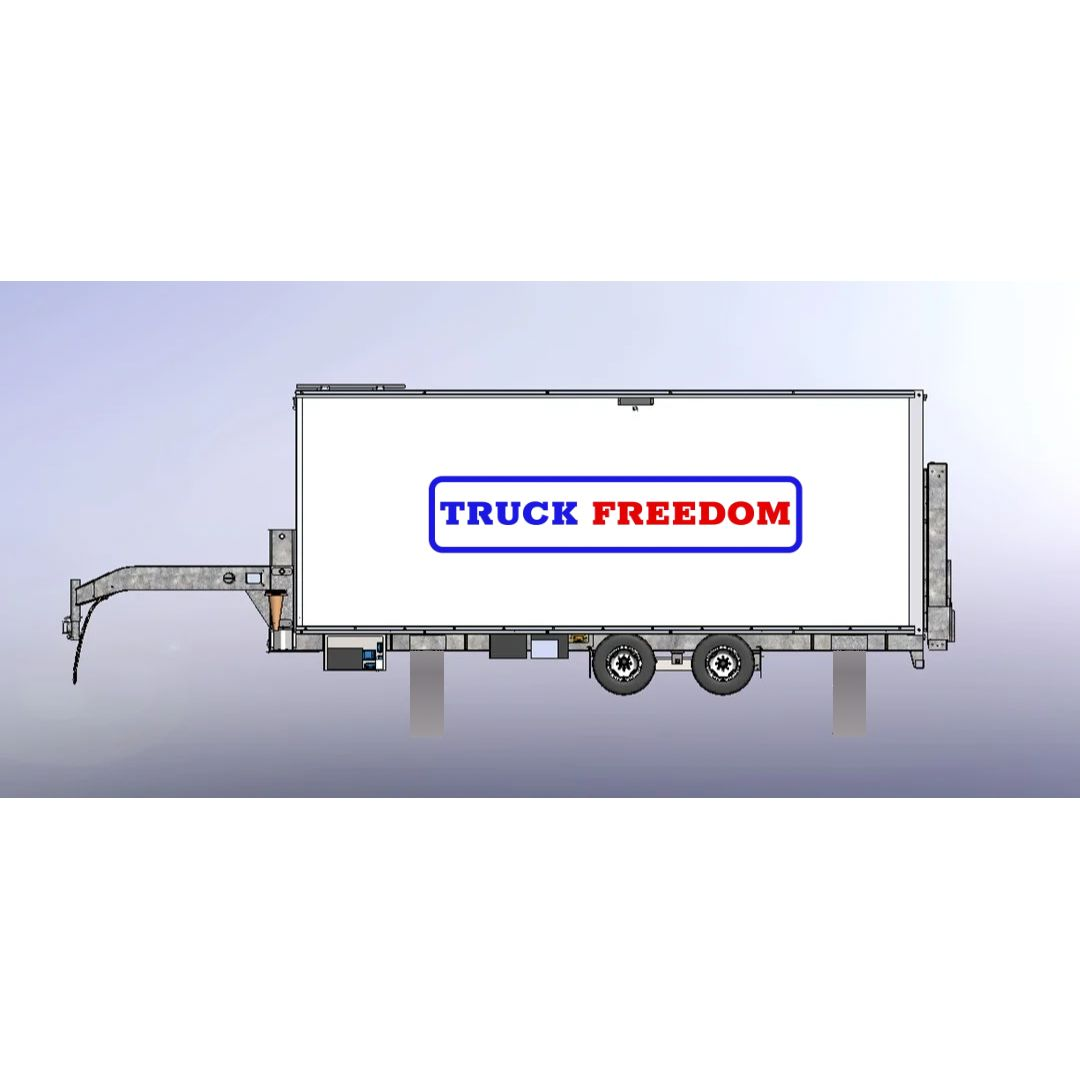

Trailers Specs:

Specs:

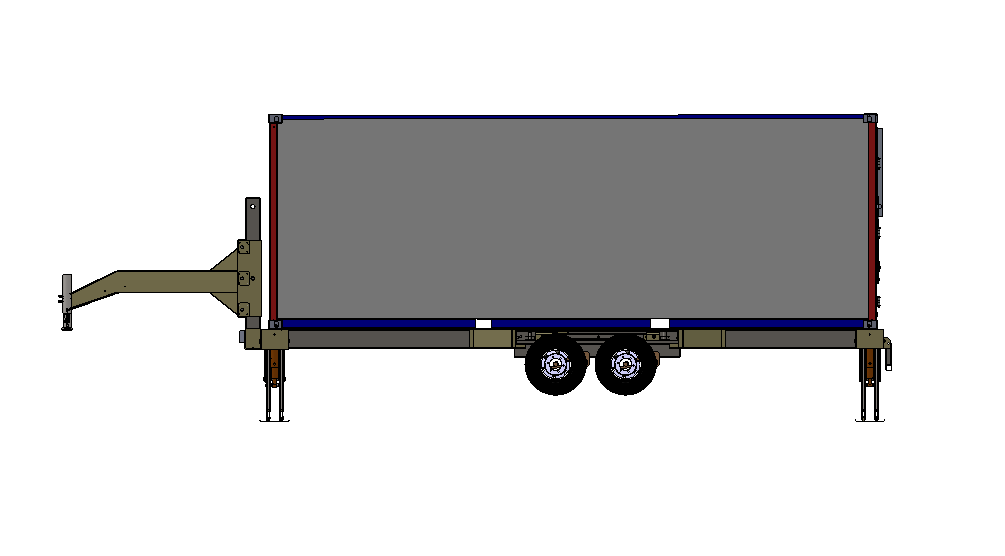

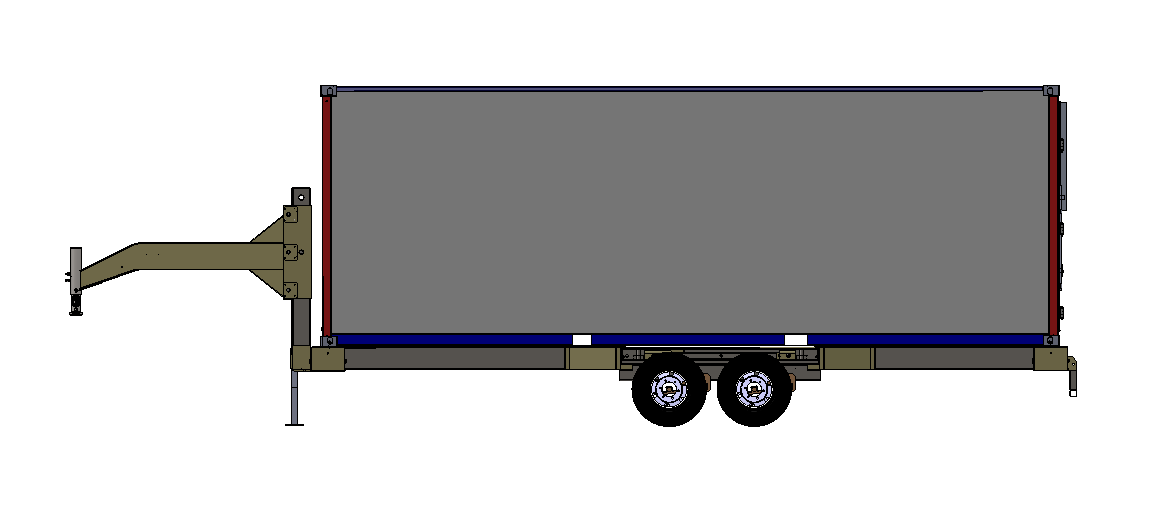

  • Detachable trailer system – Raises to dock height, lowers for transport all while staying attached.
  • Forklift-loadable – Payload capacity up to 12,000 lbs (or more for custom designs)
  • Connects to standard 3⁄4-ton and up
  • Standard sizes: 16’, 20’, 26’ (Custom: 6’–53’ length, 4’–14’ height), Reefer Options
  • Gooseneck front neck, options for Bumper pull and 5th Wheel in development
  • Liftgate for loading/unloading
  • Standard dimensions: 26’ L x 8.5W x 9’ H (12.5’ total height), Higher clearance than box truck for taller loads.

Trailers Integrated Technology:

Integrated Technology :

  • GPS tracking with geofencing
  • Live video feed (4–6 cameras inside & outside)
  • Trip reports synced with routing software
  • TPMS (Tire Pressure Monitoring)
  • Handheld device for trailer operation and diagnostics

Product Comparison

Our Box Trailers offer a Box truck alternative that could reduce TCO by up to ~20%-30%, plus other benefits that can positively impact warehouse labor, asset utilization, and route capacity/optimization.
Small Utility Trailers Commercial Trailers Standard Box Trucks Box Trailer
Dock-Height ❌
Dock-Height ✅
Dock-Height ✅
Dock-Height ✅
High Payload ❌
High Payload ✅
⚠️ (~8–10K)
✅ (12K lbs)
Pickup-Compatible ✅
Pickup-Compatible ❌
Pickup-Compatible ❌
Pickup-Compatible ✅
Tech-Enabled ❌
Tech-Enabled ⚠️
Tech-Enabled ⚠️
Tech-Enabled ✅
TCO Impact Low
TCO Impact High
TCO Impact High
TCO 20-30% Reduction
